   Home » Solar Products
Heat pipe solar collector

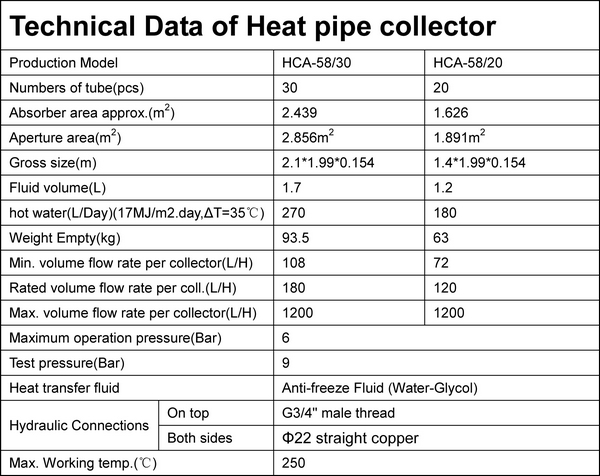

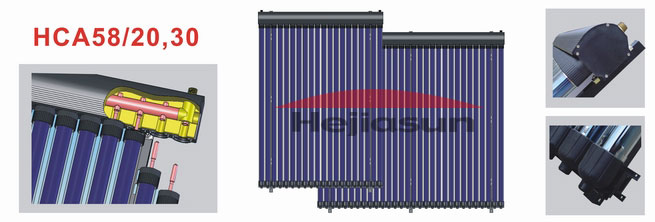

Heat pipe solar collector – HCA-58-20/30

HCA MANUAL.pdf SPF REPORTS-HCA20.pdf SPF REPORTS-HCA30.pdf

  • Pressurized system has no limit on installation altitude, nor leakage problem.Ensure a High performance and reliability even in freezing climate.Seven (7) years used in Sweden under -35 C degree with no complaints.

  • The outlet/inlet is now placed at the back of the collector to allow flush installation of 2 or more collectors and keep the connections working out of your sight.

  • New UV resistant clip-in-cups (Nylon 66) for convenient installation and protection of evacuated glass tubes.

  • High quality approved by Solar Keymark,SRCC certification

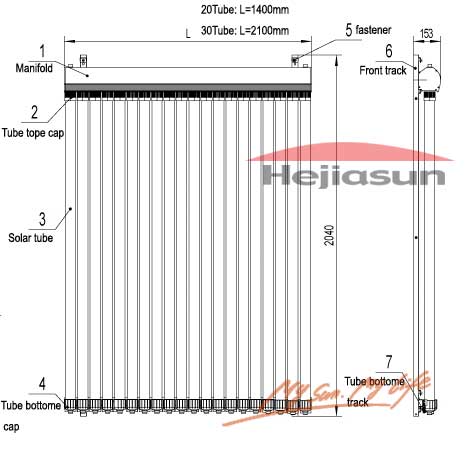

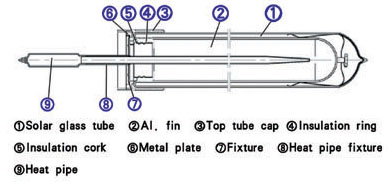

Solar Heat Pipe Collector Drawing:

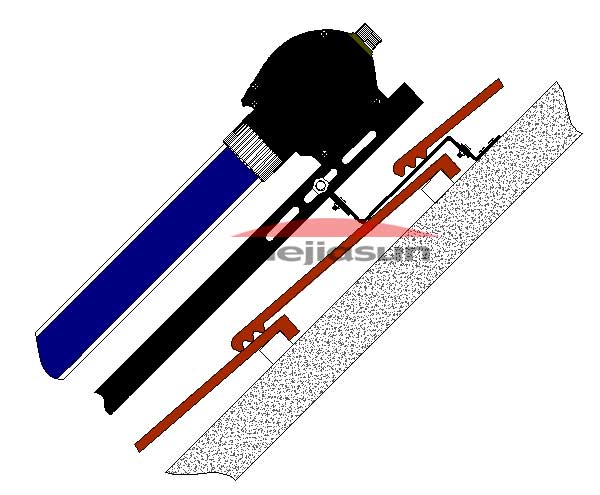

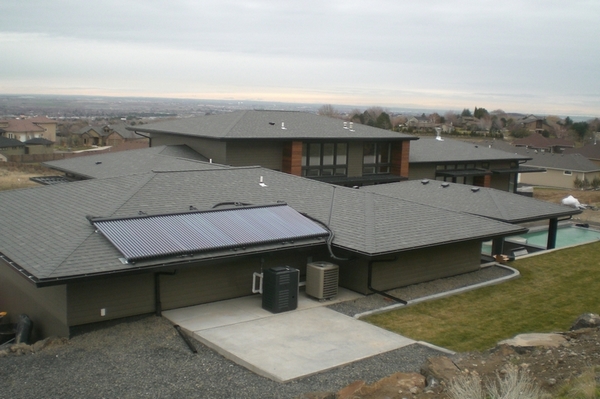

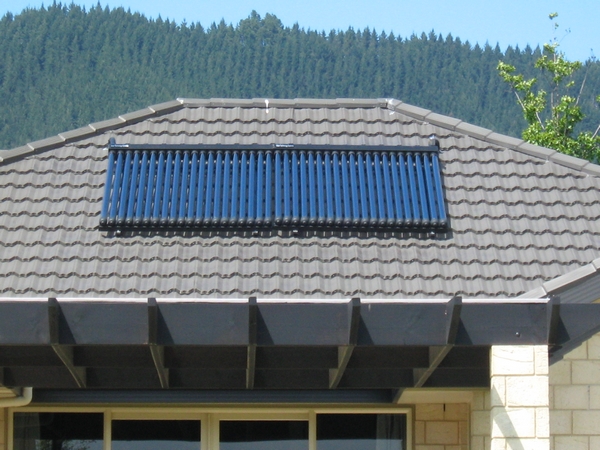

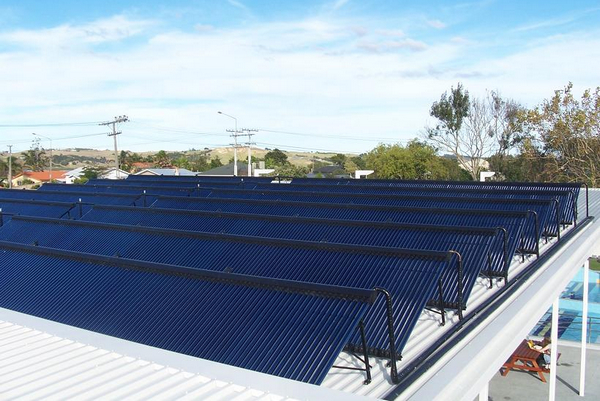

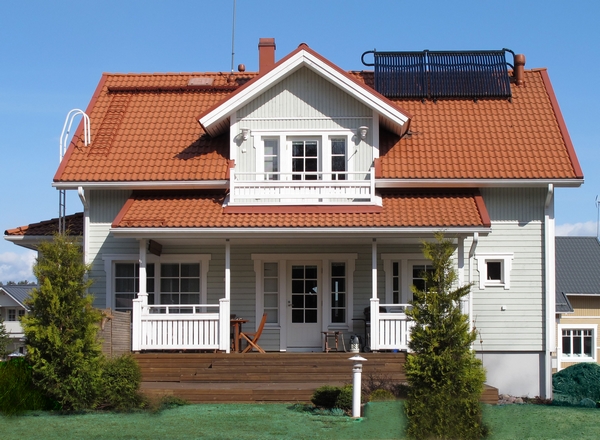

Install on roof:
