Pressurized Solar Water Heater

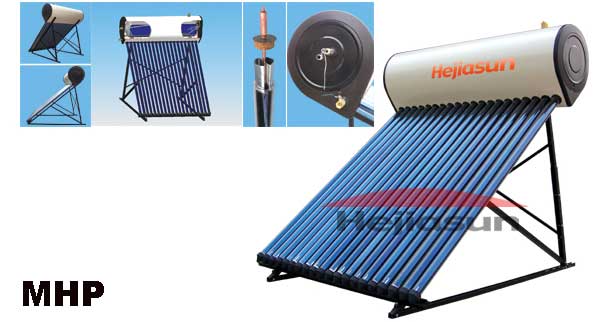

Pressurized Solar Water Heater– MHP-58-20/26

* Patented design with an external manifold below the inner tank which greatly reduces the risk of leakage problem.

* Enameled inner tank guarantees long service life.

* Convenient installation without redundant accessories such as pump station.

* Pressurized system which bears 6 bars of working pressure.

* The backup 2kW electric heater ensures hot water supplying in rainy and cloudy days.

* Excellent heat-protection of Heat pipe vacuum tubes ensure the MHP system perform well in both warm and freezing areas.

* Easy to replace the accessories such as T/P security vale, Magnesium anode, Check valve. Even the water inlet and outlet welded on the tank flange can be disassembled in the future in some case.

* Adjustable stands apply to different installation angles.

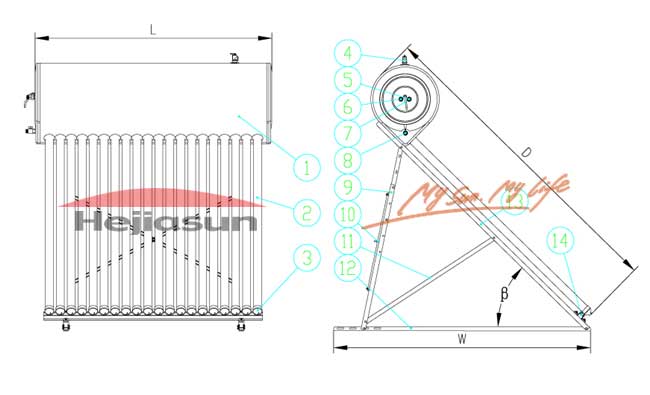

MHP Drawings:

1.Water Tank; 2.Solar Tubes; 3.Bottom Tube Cap; 4.T/P valve; 5.Inlet with check valve; 6.Outlet;

7.Wires; 8.Drain valve; 9.Adjustable Back Stands; 10.Back X supports; 11.Side Supports; 12.Bottom Supports;

13.Front Track; 14.Tube Bottom track.
